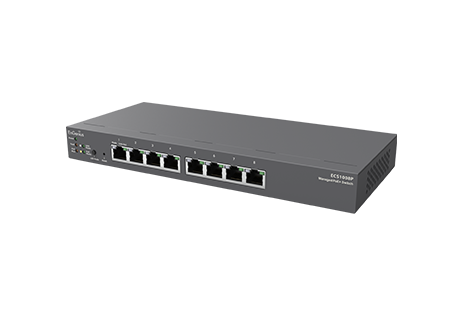

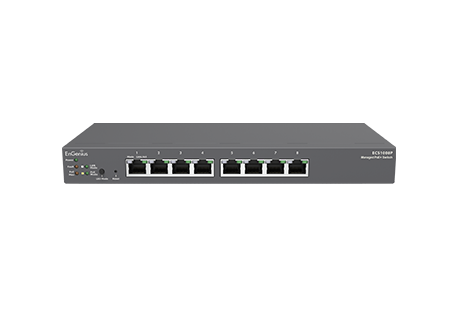

- 可由EnGenius Cloud或 ezMaster平台管理
- 8個10/100/1000 Mbps Gigabit PoE連接埠
- 所有連結埠均支援3af PoE網路線供電，總功率預算55W
- 桌上型機種，功能完整的Layer 2+網路交換器
-
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
(8)10/100/1000 Mbps Ports
Performance
Switching Capacity: 16Gbps
Forwarding Mode: Store-and-Forward
Flash Memory: 32 MB
SDRAM:256MB
Packet Buffer Memory: 512 KB
Address Database Size: 8,000 MAC Addresses
PoE Capability
PoE Standard: Ports 1~8 Support IEEE 802.3af
PoE Capable Ports: All Gigabit Ethernet Ports
PoE Budget
55 W

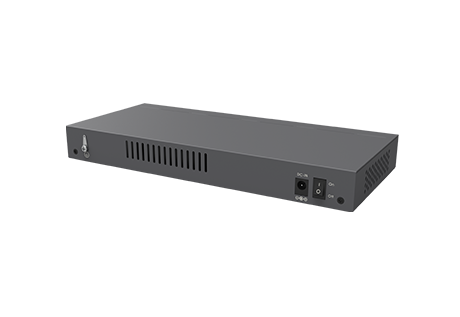

Power Source
AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A
Physical Interface
LED Indicators
Reset Button
Desktop/Wall Mount
LED Indicators
Device:
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
L2 Features
Layer 2 Features
802.3ad Link Aggregation
– Maximum of 8 Groups/8 Ports per Group
Spanning Tree Protocol
– 802.1D Spanning Tree Protocol (STP)
– 802.1w Rapid Spanning Tree Protocol (RSTP)
– 802.1s Multiple Spanning Tree Protocol (MSTP)
MAC Address Table
– 8K Entries
Static MAC Address
– 256 Entries
802.1ab Link Layer Discovery Protocol
IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Supports 4094 IGMP Groups
– IGMP per VLAN
– IGMP Snooping Query
– IGMP Snooping Fast Leave
MLD Snooping
– MDL Snooping v1/v2
– Supports 4,094 MLD Groups
– IGMP per VLAN
Jumbo Frame
– Up to 9,216 bytes
802.3x Flow Control
802.3az Energy Efficient Ethernet
VLAN
802.1Q Support
VLAN Group
– Max 4,094 Static VLAN Groups
Voice VLAN
QoS
802.1p Quality of Service
– 8 Queues per Port
Queue Handling
– Strict
– Weighted Round Robin (WRR)
QoS Based on:
– 802.1p Priority
– DSCP
Bandwidth Control
– Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)
Broadcast/Unknown Multicast/Unknown Unicast Storm Control
Access Control List (ACL)
Layer 2/3
– Supports Maximum 50 Entries (ACL)
– Supports Maximum 256 Entries (ACE)
ACL Based on:
– MAC Address
– VLAN ID
– 802.1p Priority
– Ethertype
– IP Address
– Protocol Type
– DSCP
Security
802.1X
– Guest VLAN
– Port-Based Access Control
Supports RADIUS Authentication
Port Security
– Up to 256 MAC Addresses per Port
Port Isolation
DoS Attack Prevention
BPDU Attack Prevention
Monitoring
Port Statistics
System Log
RMON
Management
Web Graphical User Interface (GUI)
Command Line Interface (CLI)
BootP/DHCP Client/DHCPv6 Client
SSH Server
Telnet Server
TFTP Client
HTTPS
SNMP
– Supports v1/v2c/v3
SNMP Trap
SNTP
Configuration Restore/Backup
Dual Images
Diagnostic
Cable Diagnostic
Ping Test
Trace Route
MIB/RFC Standards
RFC1213
RFC1493
RFC1757
RFC2674
RFC 2863
L3 Features
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
