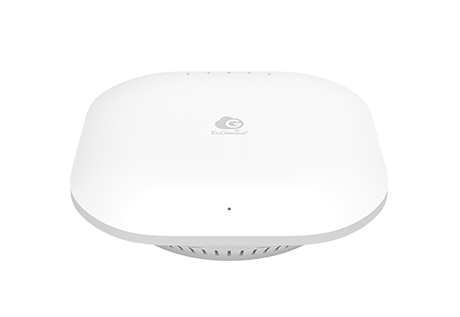

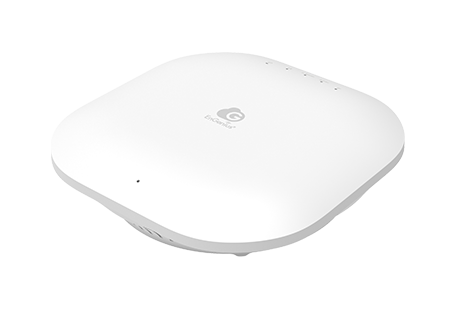

ECW120 雲端管理式 11ac Wave 2 無線室內基地台

    • 速度提升,5 GHz最高可達867 Mbps,2.4 GHz,最高可達400 Mbps
    • Wave 2 多人多工(MU-MIMO)可滿足高端業務需求
    • 可選擇基地台、Mesh基地台和Mesh網狀無線網路模式
    • 允許更多無線客戶端連接並維持高效能
    • 可透過EnSky平台遠程管理和監控
    • Gigabit乙太網路供電埠,讓電源配置更加靈活
  • Standards

    IEEE 802.11b/g/n on 2.4 GHz
    IEEE 802.11a/n/ac on 5 GHz

    Antenna

    2 x 2.4 GHz: 5 dBi
    2 x 5 GHz: 5 dBi
    Integrated Omni-Directional Antenna

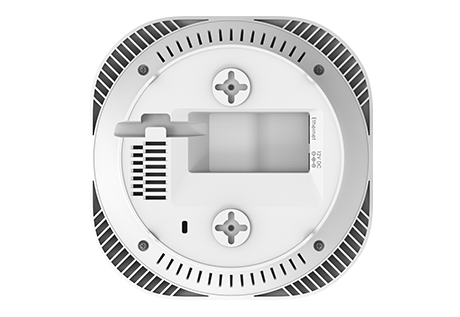

    Physical Interface

    1 x 10/100/1000 Ethernet Port (PoE)
    1 x DC Jack
    1 x Reset Button

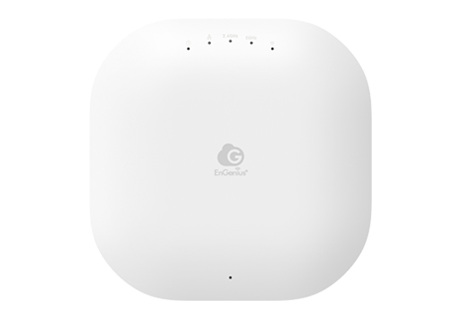

    LED Indicators

    1 x Power
    1 x LAN
    1 x Mesh
    1 x 2.4 GHz
    1 x 5 GHz

    Power Source

    Power-over-Ethernet: 802.3af Input
    IEEE 802.11e Compliant Source
    12VDC /1A Power Adapter

    Maximum Power Consumption

    12W

    Wireless & Radio Specifications

    Operating Frequency

    Dual-Radio Concurrent 2.4 GHz & 5 GHz

    Operation Modes

    AP, AP Mesh, Mesh

    Frequency Radio

    2.4 GHz: 2400 MHz~2482 MHz
    5 GHz: 5150 MHz~5250 MHz, 5250 MHz~5350 MHz, 5470 MHz~5725 MHz, 5725 MHz~5850 MHz

    Transmit Power

    Up to 23 dBm on 2.4 GHz
    Up to 23 dBm on 5 GHz
    (Maximum power is limited by regulatory domain)

    Tx Beamforming (TxBF)
    Radio Chains/Spatial Stream

    2 x 2:2

    SU-MIMO

    Two(2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2×2 wireless device under the 2.4 GHz radio. Two(2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio.

    MU-MIMO

    Two (2) Spatial Stream MU-MIMO up to 867 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO capable wireless devices under 5 GHz simultaneously.

    Supported Data Rates (Mbps):

    2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2)
    5 GHz: Max 867 (MCS0 to MCS11, NSS = 1 to 2)
    802.11b: 1, 2, 5.5, 11
    802.11a/g: 6, 9, 12, 18, 36, 48, 54
    802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM uner HT40)
    802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

    Supported Radio Technologies

    802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
    802.11b: Direct-Sequence Spread Spectrum (DSSS)
    802.11n/ac: 2×2 MIMO with 2 Streams

    Channelization

    802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
    802.11n Supports High Throughput (HT)—HT 20/40 MHz
    802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM)
    802.11n/ac Packet Aggregation: A-MPDU, A-SPDU

    Supported Modulation

    802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
    802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
    802.11b: BPSK, QPSK, CCK
